Product Overview

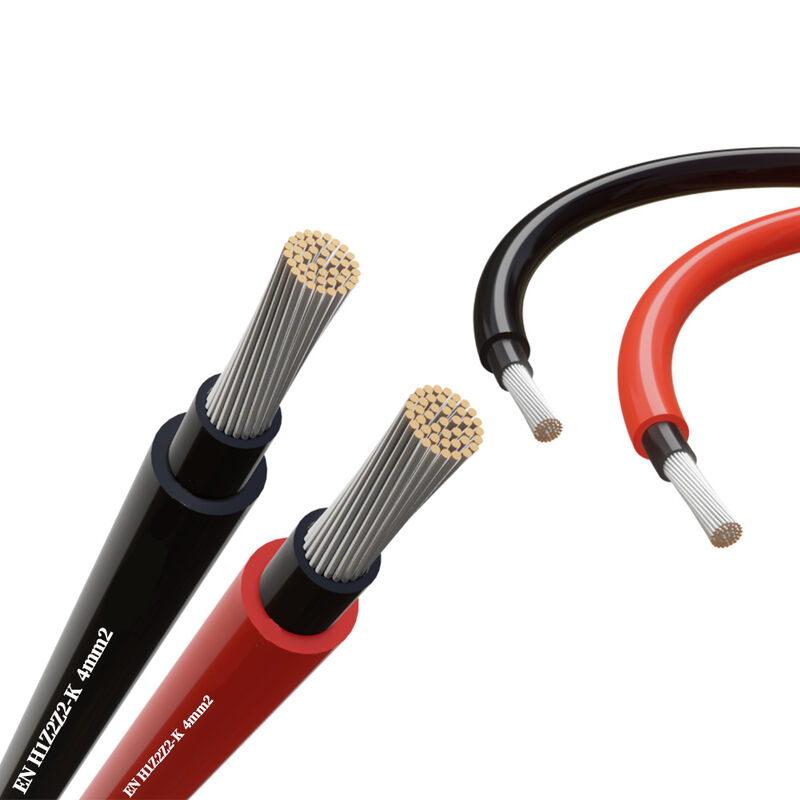

The DC Solar Cable is an advanced and reliable solution designed specifically for solar energy systems, offering exceptional performance and durability. Manufactured in compliance with the stringent TUV EN50618 standard, this cable ensures safety, efficiency, and long-term reliability in photovoltaic installations.
At the core of this cable's superior performance is its use of Cross-linked Polyethylene (XLPE) as the insulation material. XLPE insulation provides excellent thermal resistance, mechanical strength, and chemical stability, making it perfectly suited for harsh conditions encountered in solar power installations.
Key Features
- Product Name: DC Solar Cable
- Type No: H1Z2Z2-K 1x6mm²
- Sheath Material: XLPE (Cross-linked Polyethylene)
- Insulation Material: Cross-linked Polyethylene (XLPE)
- Cable Type: Photovoltaic (PV) Cable
- Weight: 760 kg/km
- Designed for solar energy applications
- Ensures efficient DC power transmission
- Suitable for outdoor and solar panel connections
Technical Specifications
| Parameter |
Specification |
| Insulation Material |
Cross-linked Polyethylene (XLPE) |
| Conductor Size |
6mm² (Range: 4mm² to 16mm²) |
| Conductor Material |
Tinned Copper |
| RoHS Compliant |
Yes |
| Cable Type |
Photovoltaic (PV) Cable |
| Type Number |
H1Z2Z2-K 1x6mm² |
| Cable Outer Diameter (OD) |
6.1mm |
| Sheath |
XLPE |
| Standard |
TUV EN50618 |
Applications
The H1Z2Z2-K DC Solar Cable is designed specifically for solar power systems and is certified by TUV, CE, ISO9001, CQC, CPR, and BCA. This cable guarantees reliability and safety in various solar energy applications including:
- Connecting solar panels to inverters, charge controllers, and batteries
- Residential, commercial, and industrial solar power systems
- Rooftop solar panels and solar farms
- Off-grid solar setups
With an excellent temperature range of -40°C to +90°C, the cable is suitable for both extreme cold and hot environments, making it ideal for outdoor solar installations in diverse climatic conditions.
Customization Options
We offer customization services tailored to your needs with the following options:
- Minimum order quantity: 500 units
- Available in black and red colors
- Packaging: 100m or 200m rolls
- Weight: 760kg per kilometer
- Supply ability: Up to 10,000,000 units
- Delivery time: 7 to 25 days
- Payment terms: T/T and L/C at sight
- Pricing: Negotiable based on order volume
Support & Services
Our DC Solar Cable is designed to provide reliable and efficient performance for solar power installations. We offer comprehensive technical support services including:
- Detailed installation guidelines and product manual
- Technical support for installation queries and performance optimization
- Warranty claims assistance
- Expert guidance to maximize lifespan and efficiency
Packing & Shipping
Each DC Solar Cable is carefully packaged to ensure protection during transit. Cables are coiled neatly and secured with durable ties, placed inside sturdy plastic bags to prevent moisture and dust exposure, then packed into reinforced cardboard boxes designed to withstand shipping stresses.
We use reliable carriers with tracking options and offer bulk packaging solutions for large orders to optimize shipping efficiency and reduce costs.
Frequently Asked Questions
Q: What is the model number of this DC Solar Cable?
A: The model number of this DC Solar Cable is H1Z2Z2-K.
Q: Where is the DC Solar Cable manufactured?
A: This DC Solar Cable is made in China.
Q: What certifications does the DC Solar Cable have?
A: The DC Solar Cable is certified with TUV, CE, ISO9001, CQC, CPR, and BCA.
Q: What is the minimum order quantity and packaging details for this cable?
A: The minimum order quantity is 500 units, and the cable is packaged in rolls of 100 meters each.
Q: What are the payment terms and delivery time for the DC Solar Cable?
A: Payment can be made via T/T or L/C at sight. Delivery time ranges from 7 to 25 days depending on the order size.
