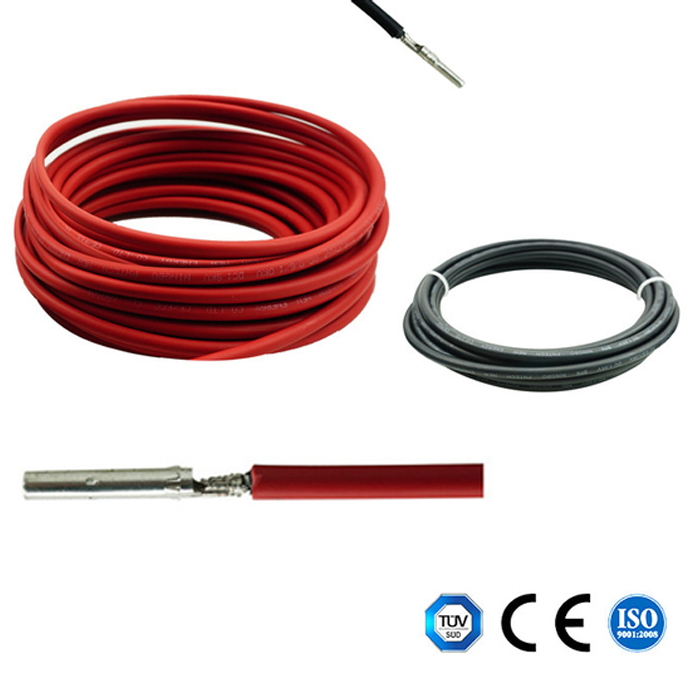

1500V DC Solar Cable 6mm2 TUV EN50618 Certified Black or Red

Name: 1500V DC Solar Cable 6mm2 TUV EN50618 Certified Black or Red
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K
Availability: InStock

Dettagli del prodotto

Certificazione: TUV & CE & ISO9001 & CQC & CPR & BCA

Model Number: H1Z2Z2-K

Termini di trasporto & di pagamento

Minimum Order Quantity: 500

Prezzo: negotiable

Packaging Details: 100m/roll

Delivery Time: 7-25days

Termini di pagamento: T/T, L/C a vista

Supply Ability: 10000000

Ottenga il migliore prezzo

Contatta ora

Specificità

Descrizione

Specificità

Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    1500V DC solar cable 6mm2, TUV EN50618 certified solar cable, black or red solar cable


Impermeabile:	SÌ	Costruzione:	84/0,28 mm
Cavo OD:	6,1 mm	Tensione DC:	1500v
Valutazione attuale:	50a	Standard:	TUV EN50618: 2014
Colore:	Nero o rosso	Modello:	H1Z2Z2-K 1x6mm2

Impermeabile:	SÌ
Costruzione:	84/0,28 mm
Cavo OD:	6,1 mm
Tensione DC:	1500v
Valutazione attuale:	50a
Standard:	TUV EN50618: 2014
Colore:	Nero o rosso
Modello:	H1Z2Z2-K 1x6mm2

Descrizione

1500V DC Solar Cable 6mm2 TUV EN50618 Certified Black or Red

6.5kV Test Voltage Solar Direct Current Cable with TUV EN50618 2014 Certification

Product Overview

The DC Solar Cable is a high-quality product designed specifically for solar energy applications, ensuring reliable and efficient energy production. Available in black or red, this cable features:

Test Voltage: 6.5kV
Rated Voltage: 1500VDC
Current Rating: 50A
Low Resistance: ≤3.39(Ω/KM)
XLPE Jacket Material
TUV EN50618:2014 Certified

Technical Specifications

Parameter	Value
Standard	TUV EN50618:2014
Jacket	XLPE
Rated Voltage	1500VDC
Type	Single Core
Construction	84/0.28mm
Resistance	≤3.39(Ω/KM)
Color	Black or Red
Cable Spec	1x6mm²
Model	H1Z2Z2-K 1x6mm²

Applications

This Photovoltaic Electric Cable is essential for:

Solar power systems
Photovoltaic installations
Residential and commercial solar projects
Direct current transmission applications

Customization Options

Customize your order with these specifications:

Model Number: H1Z2Z2-K
Minimum Order Quantity: 500 units
Packaging: 100m/roll
Delivery Time: 7-25 days
Payment Terms: T/T, L/C At Sight

Support & Services

Expert installation assistance
Product documentation and specifications
Warranty information and claims support
Training resources

Packaging & Shipping

Each cable is securely packaged in protective plastic and sturdy cardboard boxes with cushioning material. Shipping includes tracking information for your convenience.

Frequently Asked Questions

Q: What is the model number of the DC Solar Cable?

A: The model number is H1Z2Z2-K.

Q: What certifications does the DC Solar Cable have?

A: The cable is certified by TUV, CE, ISO9001, CQC, CPR, and BCA.

Q: What is the minimum order quantity?

A: The minimum order quantity is 500 units.
